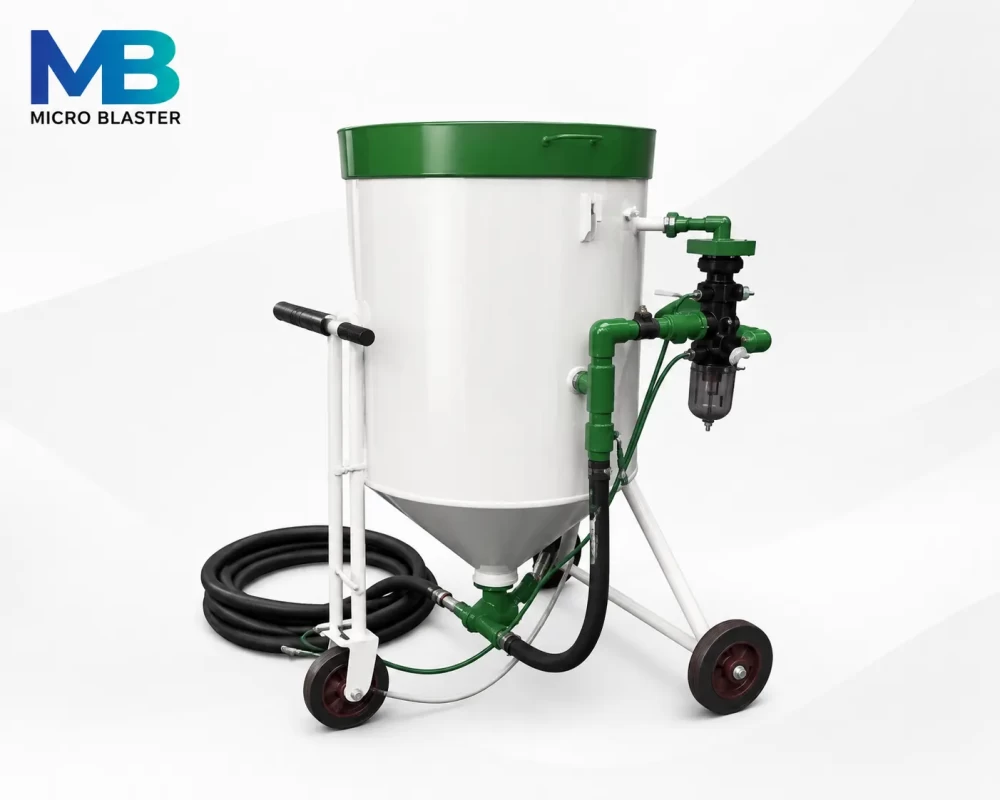

Complete Portable Sand Blasting Machine Range – P7-150 to P7-1000

Portable Sand Blasting Machine – Efficient Abrasive Blasting Equipment for Industrial Applications

A portable sand blasting machine is a pressure-based sand blasting machine designed to clean, prepare, restore, and finish a wide range of industrial surfaces. Its movable construction allows operators to take the blasting equipment directly to the job site, making it particularly useful for large components, fixed structures, fabrication work, maintenance projects, and applications where transporting the workpiece is difficult.

A portable sand blasting machine is operated manually. The portable sand blaster is safe, with a high abundance of system delineation to be used with a wide range of abrasive media. Its functions include descaling, shot peening, Deburring, Deflashing, polishing, cleaning, and stress relieving. The sheet used to make the body of sand blasting machine should not be less than 6mm thickness. The sand blasting machine is tested in the hydraulic machine at 20 kg/cm2. The sheet of the portable sand blasting machine is made up of mild steel for the inner and outer surfaces. A mushroom valve is used for the vacuum pack after embedding the material or abrasive media. An NRV (non-return valve) is used to stop the backflow of air that passes through a filter. NRV is placed between the pressure gauge and the air filter regulator. The pressure required for the proper working of sand blasting machine is atleast 7kg, which is controlled by the user.

The portable sand blasting machine is designed for industrial surface preparation and can be used with a range of suitable abrasive media. The portable sand blasting machine specifies a 150kg-460 kg sand storage capacity, a 5-9.5 mm nozzle diameter, a 5-10 metre standard sand blasting hose, and a listed cleaning coverage of approximately 3-21 sq. m/hr.

Portable Sand Blasting Equipment

In portable sand blasting equipment, a filter regulator is used to pass dry and clean air to the sand blasting hopper at 80 PSI. A pinch valve is used to control the flow of blasting media, such as garnet abrasive sand, glass beads, copper slag, aluminum oxide, etc which are used for sand blasting. The pinch valve is connected to the mixing tube(how much quantity to mix is controlled by the user). The mixing tube has two holes; one for air to enter and one for abrasive media to enter. The abrasive hole is connected to the blasting hose, which is already connected to the nozzle holder, where a sand blasting nozzle of 95mm will lead off. In a pinch valve, a pinch valve rubber sleeve is used to protect it from further damage during the blasting process. A ball valve is used for air entering and for air releasing from the sand blasting hopper. The standard blast hose length is 10 meters, which can be extended according to the user's demand.

The total height of the portable sand blasting machine is 1611mm. The diameter of the machine body is 761mm. In a portable sand blasting machine, there is one main hole plate that is used for maintenance and cleaning the inner part of the portable sand blasting machine P7-1000. In the upper part of the machine, material is embedded for blasting, so there is counterfeit from which blasting media is separated from large particles; otherwise, large particles will block the nozzle.

How Does a Portable Sand Blasting Machine Work?

The operation of a portable sand blasting machine involves several important stages:

• Loading the Abrasive : Suitable abrasive media is placed inside the machine through the designated filling opening. A screen helps prevent oversized particles from entering the system and blocking the nozzle.

• Supplying Clean Compressed Air: A filter regulator helps supply dry and clean compressed air to the sand blasting hopper. Proper air quality is important for maintaining consistent blasting performance.
• Pressurizing the Hopper: The pressure vessel is pressurized using compressed air. The system uses valves to manage airflow and maintain the required operating conditions.
• Controlling Abrasive Flow: A pinch valve controls the quantity of abrasive entering the mixing section. This allows the operator to adjust abrasive flow according to the blasting requirement.

• Mixing Air and Abrasive: The mixing tube combines compressed air with abrasive media before sending the mixture into the blasting hose.

• Blasting Through the Nozzle: The abrasive-air mixture travels through the sand blasting hose and exits through the nozzle at high velocity. The resulting impact cleans or profiles the surface.

• Exhausting the System: An exhaust or release valve is used to release pressure from the machine after blasting according to the appropriate operating procedure.

A portable sand blasting machine is of two types. One is remote controlled and the second is without a remote. It is divided into four categories:

P7-1000 Portable Sand Blasting Machine

The P7-1000 is a high-capacity portable sand blasting machine designed for large industrial blasting projects. It offers approximately 460 kg abrasive storage capacity, a 9.5 mm sand blasting nozzle, and a 10-metre blast hose. With a listed cleaning rate of around 15–21 sq. m/hr, it is suitable for steel structures, tanks, pipelines, shipyards, heavy machinery, rust removal, paint stripping, and surface preparation.

P7-500 Portable Sand Blasting Machine

The P7-500 is a heavy-duty portable sand blasting machine with a large abrasive storage capacity, making it suitable for extended industrial blasting operations. It uses approximately 6–8 mm tungsten carbide nozzles and a 7.5-metre blast hose. Its listed cleaning rate is around 5–21 sq. m/hr, depending on abrasive, pressure, nozzle, and surface condition. Applications include fabrication, construction, rust removal, coating removal, and machinery maintenance.

P7-300 Portable Sand Blasting Machine

The P7-300 is a versatile portable sand blasting machine designed for medium-scale industrial applications. It provides approximately 300 kg abrasive storage capacity, supports 5–10 mm nozzle sizes, and has a listed cleaning rate of about 5–7 sq. m/hr. It is suitable for workshops, fabrication units, construction sites, metal cleaning, rust removal, paint stripping, deburring, and surface preparation before coating.

P7-150 Portable Sand Blasting Machine

The P7-150 is a compact portable sand blasting machine designed for smaller and medium-duty blasting requirements. Its lower-capacity design makes it convenient for workshops, maintenance jobs, and on-site applications. Depending on the configuration, it can be equipped with suitable blasting nozzles and sand blasting hoses for rust removal, paint stripping, metal cleaning, surface preparation, and general abrasive blasting where portability and easy handling are important.

Main Uses of Portable Sand Blasting Machine

A portable sand blaster provides several important surface-treatment functions.

• Rust Removal: Abrasive blasting effectively removes surface rust and oxidation from compatible metal components.
• Paint Stripping: Old paint and unwanted coatings can be removed before repainting or applying a new protective layer.
• Descaling: Blasting can remove scale and other firmly attached deposits from suitable surfaces.
• Deburring: Abrasive media treatment can help remove burrs and minor unwanted surface irregularities from suitable components.
• Deflashing: Suitable manufactured components can be treated to remove unwanted flashing from production processes.
• Polishing and Finishing: Appropriate abrasive media can be used for controlled finishing and surface treatment.
• Surface Profiling: Abrasive blasting can create a controlled surface profile that helps prepare substrates for subsequent coating operations.

Portable Sand Blasting Machine Accessories

The performance of a blasting system depends not only on the pressure vessel but also on the accessories used with it. Common accessories include:

• Abrasive Blast Hose: The abrasive blast hose carries the abrasive-air mixture from the pressure vessel to the nozzle. It should be designed specifically for abrasive blasting applications.
• Blasting Nozzle: The nozzle controls and accelerates the abrasive stream. Tungsten carbide and boron carbide are commonly selected for demanding abrasive applications.
• Deadman Handle: A deadman handle provides operator control over blasting operation and is an important part of many remote-control blasting systems.
• Remote Control Valve: A remote control valve can be used with compatible blasting systems to control the pressurization and depressurization process.
• Nozzle Holder and Couplings: Properly matched hose couplings and nozzle holders help establish secure connections between the blasting hose and nozzle assembly.

How to Select the Right Portable Sand Blasting Machine

Before purchasing a portable sand blasting machine, consider the following factors:

• Abrasive capacity: Choose a vessel capacity according to the size and duration of the blasting operation.
• Abrasive type: Select media suitable for the workpiece and desired surface finish.
• Air compressor: Ensure the compressor provides sufficient CFM and operating pressure.
• Nozzle size: Match the nozzle to the compressor and required blasting productivity.
• Blast hose: Select a suitable abrasion-resistant sand blasting hose with compatible fittings.
• Control system: Consider whether manual or remote operation is appropriate.
• Application: Identify whether the machine will be used for fabrication, construction, maintenance, shipyard, foundry, or coating preparation.
• Safety equipment: Provide suitable blasting PPE, breathing-air protection, ventilation, and dust-control measures.

Portable Sand Blasting Machine Price in India

Portable sand blasting machine price in India depends on the type & size of portable sand blasting machine. Sand Blasting Hopper is the simplest Manufacturer of mobile, macro, small, portable sand blasting equipment purchasable in India. Portable Sand Blasting Machines Manufacturers contain two input lines from which air or sand enters the blending unit; this mixture then flows to an output channel to supply an influence stream with the assistance of a nozzle.

The portable sand blasting machine price depends on several factors, including machine capacity, pressure-vessel configuration, blasting accessories, sand blasting nozzle selection, hose length, control system, and quantity.

Portable Sand Blasting Machine Manufacturers in India

We are a portable sand blasting machine manufacturer in India and supplier of sand blasting machines, grit blasting machine, sand blasting cabinet, pressure blasting cabinet, portable sand blasters, abrasive blasting hoses, sand blasting hoses, blasting nozzles, deadman controls, remote control valves, thermal spray gun, arc spray guns, metalizing gun abrasive media, and sand blasting machine spare parts worldwide, providing abrasive blasting equipment for industrial cleaning, surface preparation, coating preparation, rust removal, paint removal, fabrication, construction, and maintenance applications.

Our range of blasting equipment is designed to accommodate different project requirements, from compact portable machines to larger-capacity abrasive blasting systems.

Why Choose Portable Sand Blasting Machine?

A portable sand blasting machine offers an effective combination of mobility, abrasive blasting performance, and application flexibility. It can be used for everything from routine maintenance and rust removal to demanding industrial surface preparation.

With the right combination of abrasive media, air compressor, blasting hose, nozzle, pressure, and control system, portable sand blasting equipment can provide reliable results across a wide range of applications. Whether you require a portable sand blaster for metal cleaning, paint removal, corrosion treatment, fabrication, construction, foundry applications, machinery maintenance, or coating preparation, choosing the correct machine configuration is essential.

For safe and efficient operation, always follow the equipment manufacturer's instructions and applicable abrasive-blasting safety requirements.
